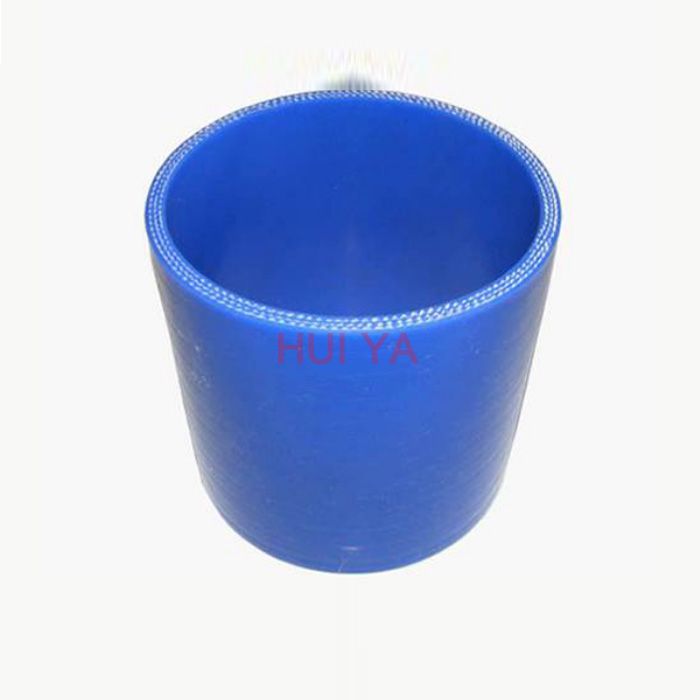

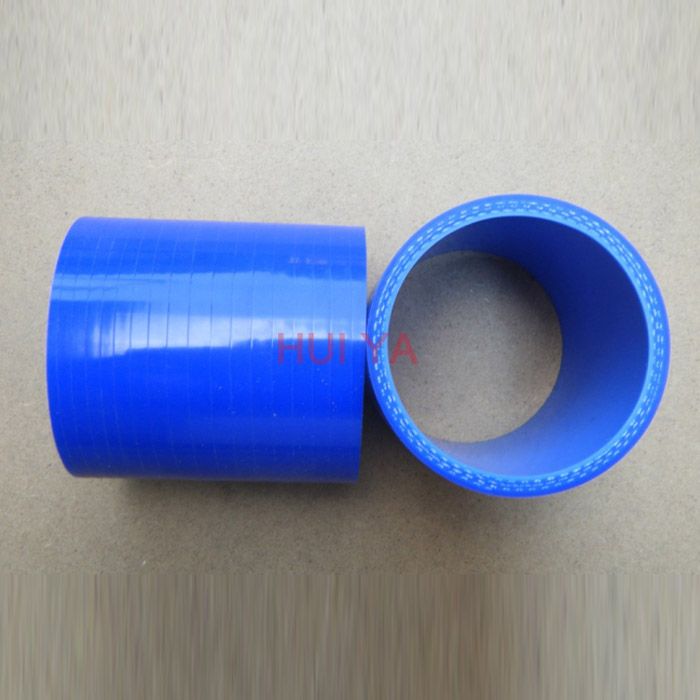

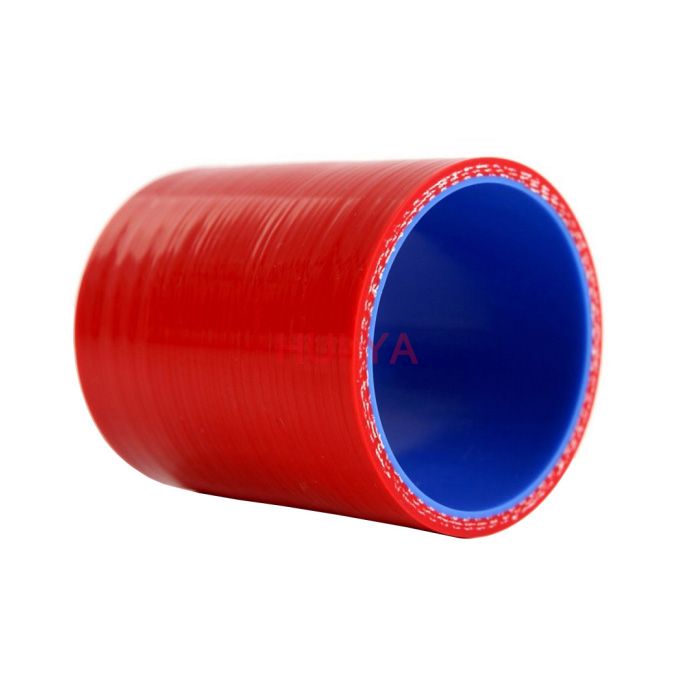

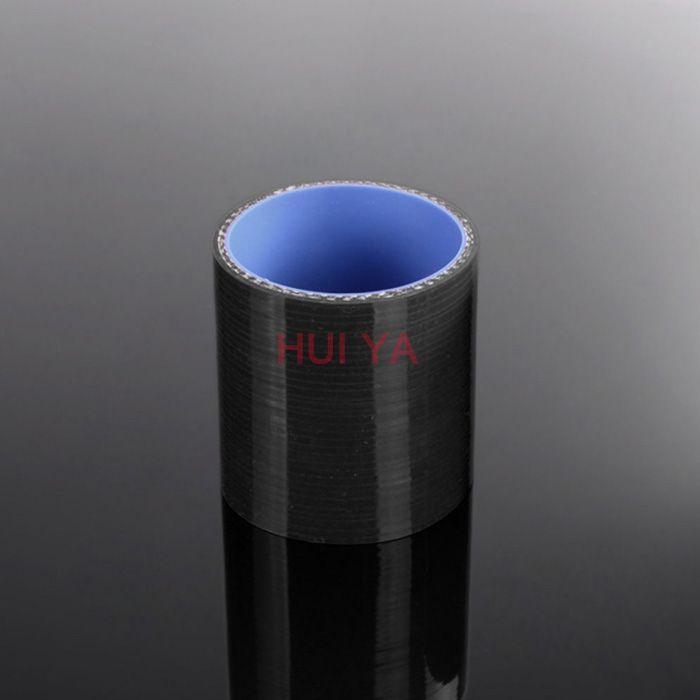

Straight Silicone Coupling Hose is made of high flame-resistance silicone rubber reinforced by 3 to 5 plies premium polyesters fabrics. This straight coupling is engineered for extreme temperatures and various pressure ranges. Hose coupling is often used for joining two rigid pipes to prevent connections between then coming apart or having your hard pipes or other related equipment broken.
Product parameters
Construction:
Inner: Silicone or Fluorosilicone
Cover: Silicone
Reinforced ply: 3 to 5 plies
Reinforcement: Polyester/Aramid/Glass fiber
Temperature: -40℃ to +200℃
Scope of application
Coupling hose can be found in high performance racing vehicles, commercial truck and bus, marine, agricultural and off highway vehicles, turbo diesel and other manufacturing industries.
| Specification - straight silicone coupling hose | ||||||
| Item No. | I.D. | O.D. | Thickness | Burst Pressure | Length | |
| inch | mm | mm | mm | Mpa | mm | |
| HYSCH001 | 1/4 | 6 | 16 | 5 | 3.5 | 100 |
| HYSCH002 | 3/8 | 10 | 20 | 5 | 2.9 | 100 |
| HYSCH003 | 1/2 | 13 | 23 | 5 | 2.7 | 100 |
| HYSCH004 | 5/8 | 16 | 26 | 5 | 2.4 | 100 |
| HYSCH005 | 3/4 | 19 | 29 | 5 | 2.2 | 100 |
| HYSCH006 | 7/8 | 22 | 32 | 5 | 2.1 | 100 |
| HYSCH007 | 1 | 25 | 35 | 5 | 2 | 100 |
| HYSCH008 | 1-1/2 | 38 | 48 | 5 | 1.5 | 100 |
| HYSCH009 | 2 | 51 | 61 | 5 | 1.2 | 100 |
| HYSCH010 | 2-1/2 | 63 | 73 | 5 | 1 | 100 |
| HYSCH011 | 3 | 76 | 86 | 5 | 0.8 | 100 |
| HYSCH012 | 3-1/2 | 89 | 99 | 5 | 0.6 | 100 |
| HYSCH013 | 4 | 102 | 112 | 5 | 0.5 | 100 |
| Note | The thickness, length and color can be customized as your request. | |||||
