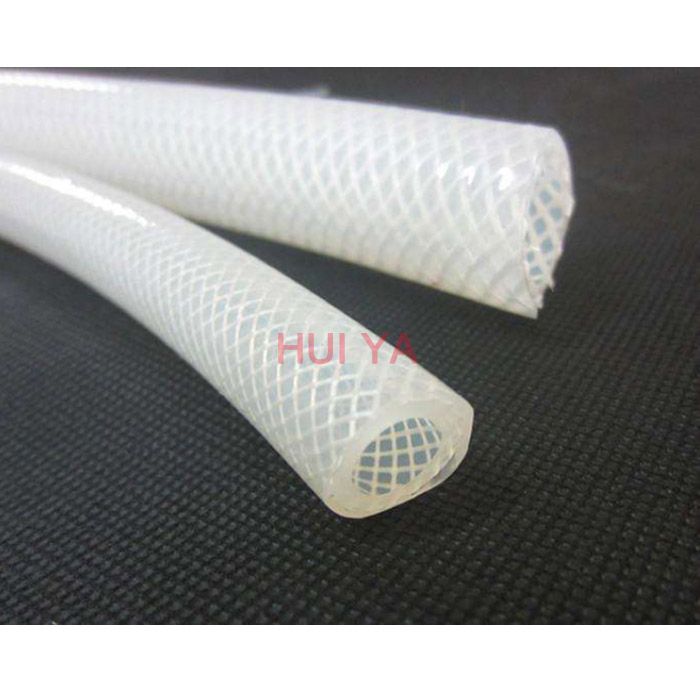

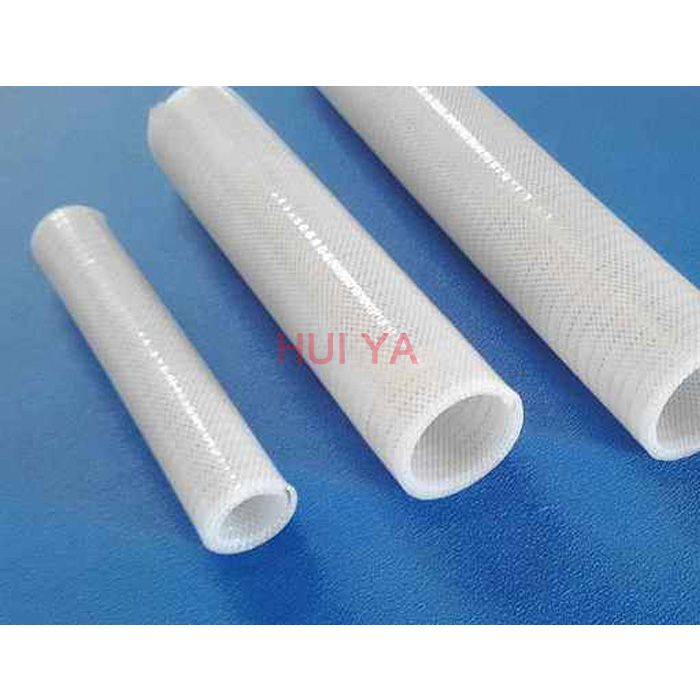

The kind of silicone tubing is usually used in special environment with its high strength and pressure resistance. Silicone braided hoses are reinforced with polyester threads to make them highly strong and durable. Compared with common reinforced tubing, silicone braided hose processes some crucial features as follows.
Product Features
1. Sanitary and environment protecting.
2. Heat resisting, compression resisting.
3. Good cracking resistance.
4. Durable in use, high pressure resisting, antioxidant.
Scope of application
Silicone braided hose is widely applied in laboratory, ultra pure liquid transmission, cell culture, peristaltic pump, food transmission, dairy products, cosmetics, veterinary drug, etc.
| Specification - silicone braided hose | ||||||
| Item No. | I.D. | O.D. | Thickness | B.P. | Min.B.R. | |
| inch | mm | mm | mm | bar | mm | |
| HYSBH01 | 1/8 | 3 | 8 | 2.5 | 70 | 30 |
| HYSBH02 | 1/4 | 6 | 12 | 3 | 56 | 45 |
| HYSBH03 | 5/16 | 8 | 16 | 4 | 46 | 55 |
| HYSBH04 | 3/8 | 10 | 18 | 4 | 42 | 70 |
| HYSBH05 | 1/2 | 13 | 23 | 5 | 34 | 85 |
| HYSBH06 | 5/8 | 16 | 26 | 5 | 30 | 95 |
| HYSBH07 | 1 | 25 | 38 | 6.5 | 18 | 160 |
| HYSBH08 | 1-1/4 | 31 | 46 | 7.5 | 15 | 200 |
| Note | The sizes above are just for reference, other sizes and colors are available. | |||||
