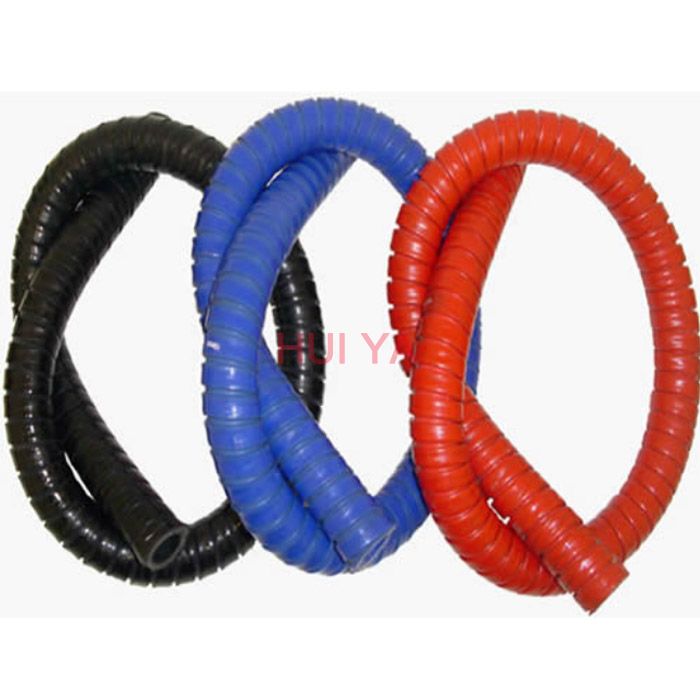

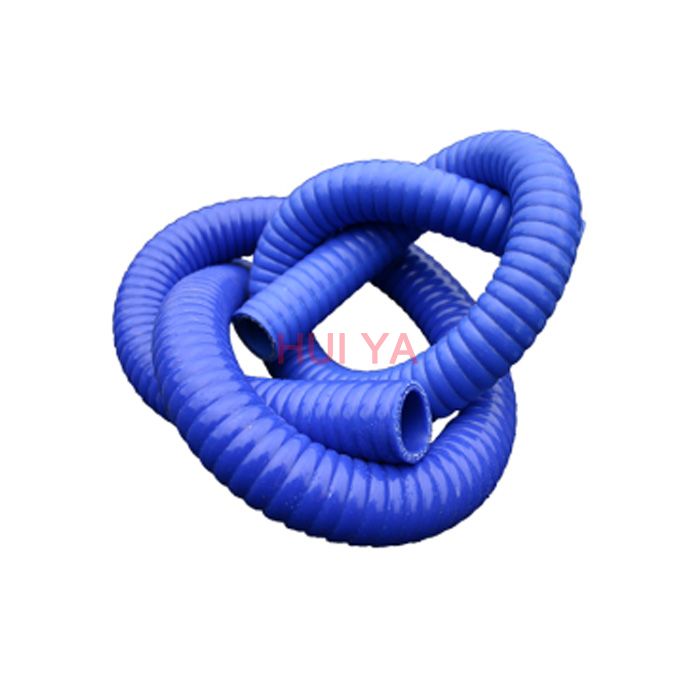

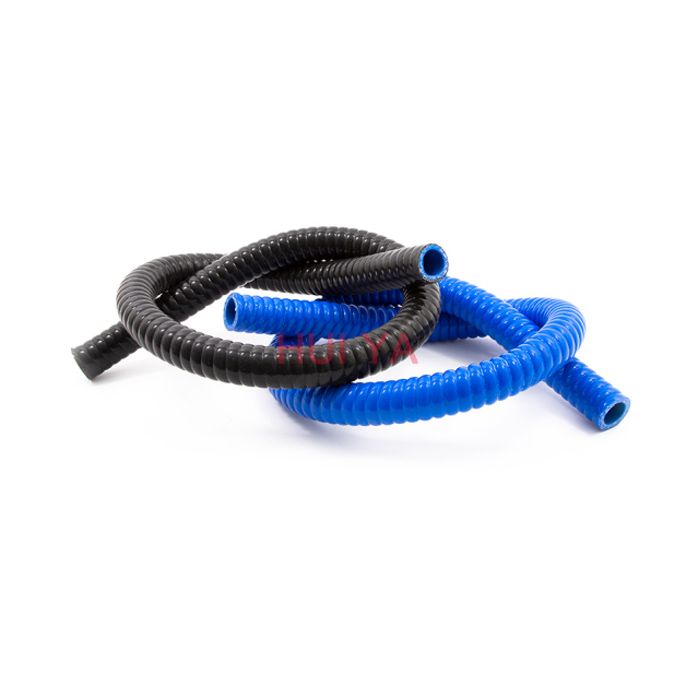

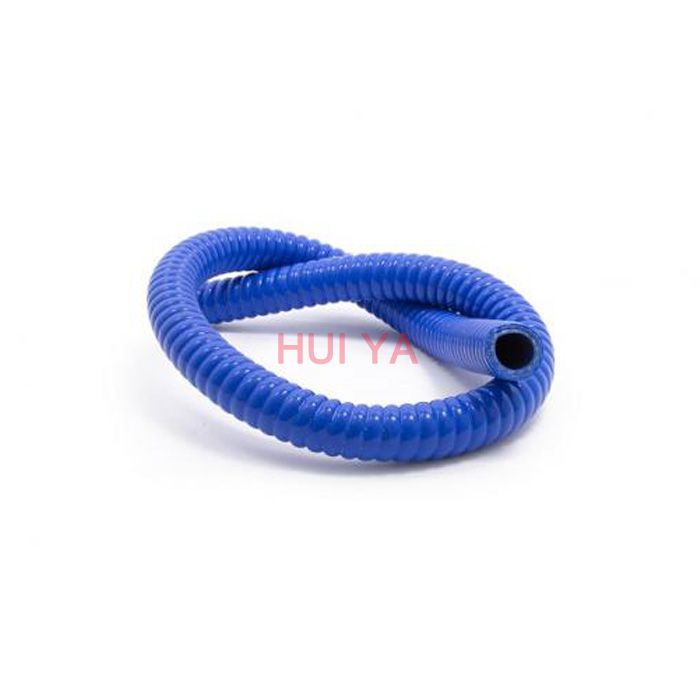

Flexible silicone, manufactured with a steel wire spiral in-plant inside the reinforcement plies, has an excellent flexibility and can withstand higher pressure.
Product parameters
Inner: Silicone or Fluorosilicone
Cover: Silicone
Reinforced ply: 3-5plies
Reinforcement: Polyester/Aramid/Glass fiber
Scope of application
Breathers, water hoses, heater matrix, top and bottom radiator connections, etc.
| Specification - flexible silicone hose | ||||||
| Item No. | I.D. | O.D. | Thickness | Burst Pressure | Length | |
| inch | mm | mm | mm | Mpa | mm | |
| HYFSH001 | 1/4 | 6 | 16 | 5 | 3.5 | 100 |
| HYFSH002 | 3/8 | 10 | 20 | 5 | 2.9 | 100 |
| HYFSH003 | 1/2 | 13 | 23 | 5 | 2.7 | 100 |
| HYFSH004 | 5/8 | 16 | 26 | 5 | 2.4 | 100 |
| HYFSH005 | 3/4 | 19 | 29 | 5 | 2.2 | 100 |
| HYFSH006 | 7/8 | 22 | 32 | 5 | 2.1 | 100 |
| HYFSH007 | 1 | 25 | 35 | 5 | 2 | 100 |
| HYFSH008 | 1-1/2 | 38 | 48 | 5 | 1.5 | 100 |
| HYFSH009 | 2 | 51 | 61 | 5 | 1.2 | 100 |
| HYFSH010 | 2-1/2 | 63 | 73 | 5 | 1 | 100 |
| HYFSH011 | 3 | 76 | 86 | 5 | 0.8 | 100 |
| HYFSH012 | 3-1/2 | 89 | 99 | 5 | 0.6 | 100 |
| HYFSH013 | 4 | 102 | 112 | 5 | 0.5 | 100 |
| Notes | 1. The thickness, length and color can be customized as your request.2. Silicone hoses are not compatible with oils and fuel.3. For 51mm plus internal diameters, they are not as flexible as the smaller diameters. It is suitable for mild angles, not for tight angles. | |||||
