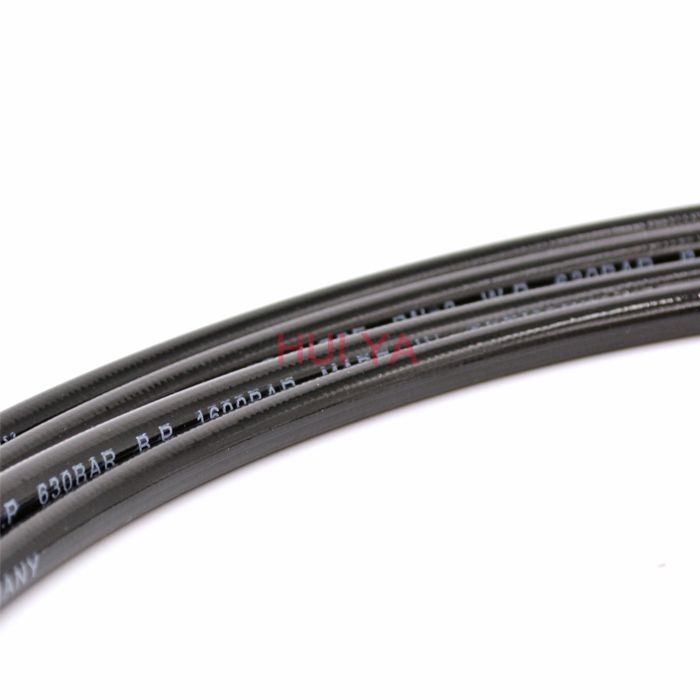

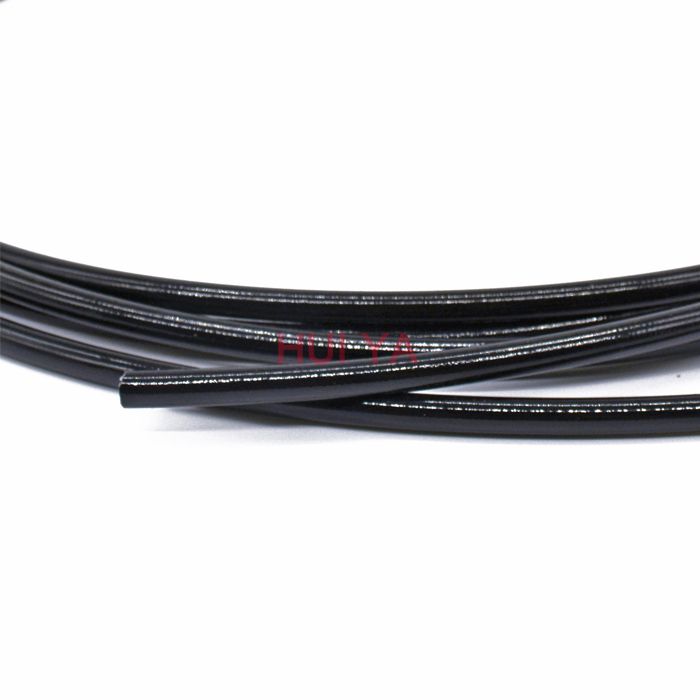

SAE 100R8 high-pressure thermoplastic hydraulic hose is used in non-conductive applications such as blowout preventers, lube lines, and construction machinery.
HY-SAE100 (R1-R19)hydraulic rubber hose specifications.pdf
Product parameters
SAE 100R8 high-pressure thermoplastic hydraulic hose is used in non-conductive applications such as blowout preventers, lube lines, and construction machinery. Petroleum-based and synthetic hydraulic fluids within -40°F to 212°F are frequently used, which will not cause tube failure in a specified temperature range. If the working temperature exceeds 212°F, the service life of the hose will materially shorten.

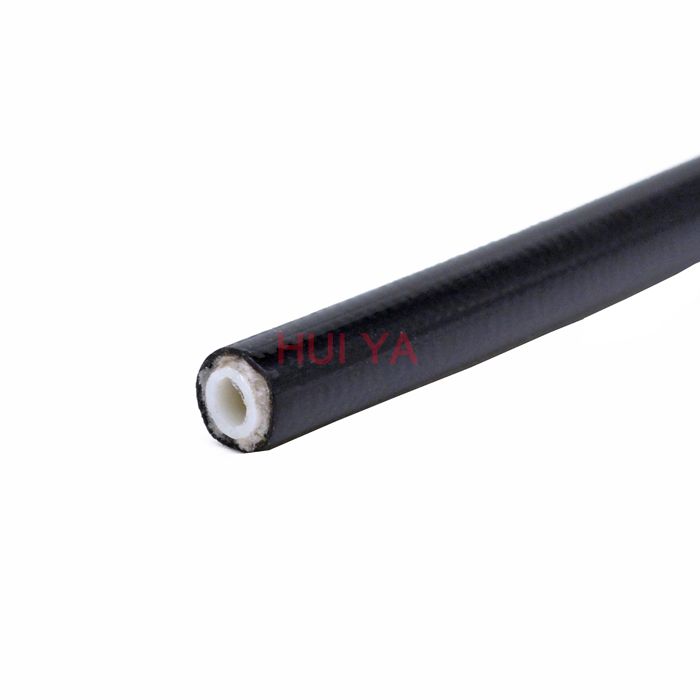

INNER TUBE: Oil resistant seamless thermoplastic Polyamide (PA) tube.
REINFORCEMENT: one or two layer braided high tensile aramid fibre
COVER: Black high abrasion resistant polyurethane.
| Item code | I.D | O.D | W.P | B.P | Length | Min. Bend Radius | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | mm | kg/m | |
| HYR8-05 | 3/16" | 5 | 14.6 | 350 | 5075.0 | 1400 | 20300 | 100 | 90 | 0.08 |
| HYR8-06 | 1/4" | 6.3 | 16.8 | 350 | 5075.0 | 1400 | 20300 | 100 | 100 | 0.09 |
| HYR8-10 | 3/8" | 10 | 20.3 | 280 | 4046.0 | 1120 | 16240 | 100 | 125 | 0.18 |
| HYR8-13 | 1/2" | 12.5 | 24.6 | 245 | 3552.5 | 980 | 14210 | 100 | 180 | 0.22 |
| HYR8-16 | 5/8" | 16 | 29.8 | 192 | 2784.0 | 770 | 11165 | 50 | 205 | 0.31 |
| HYR8-19 | 3/4" | 19 | 33.0 | 157 | 2276.5 | 630 | 9135 | 50 | 240 | 0.36 |
| HYR8-25 | 1'' | 25 | 38.6 | 140 | 2030.0 | 560 | 8120 | 50 | 300 | 0.51 |
Scope of application
Medium pressure hydraulic and pneumatic systems.
Meets or exceeds SAE 100R8 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
