SAE 100R3 medium pressure hydraulic hose is ideal for medium pressure fuel and oil lines as well as return and suction hoses of hydraulic systems.
HY-SAE100 (R1-R19)hydraulic rubber hose specifications.pdf
Product parameters

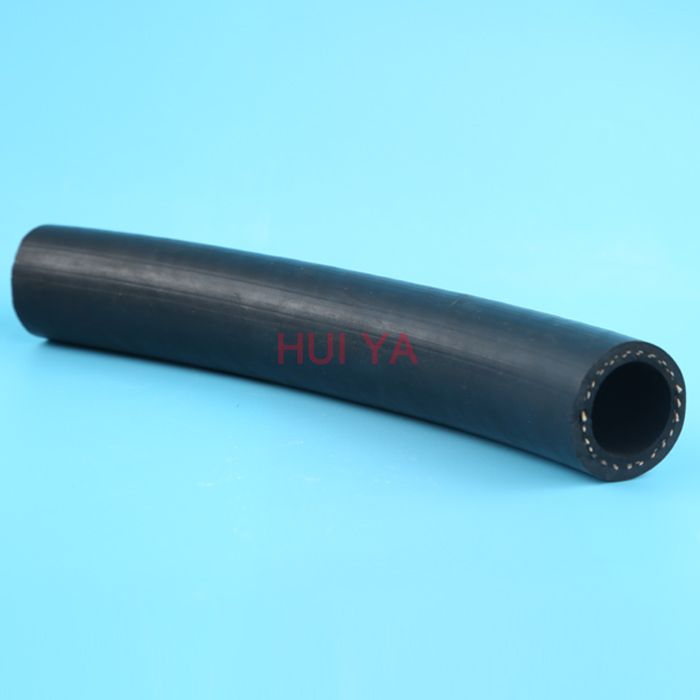

SAE 100R3 medium pressure hydraulic hose is ideal for medium pressure fuel and oil lines as well as return and suction hoses of hydraulic systems. Two plies of braided textile protect the inner tube in case that the outside cover is broken.

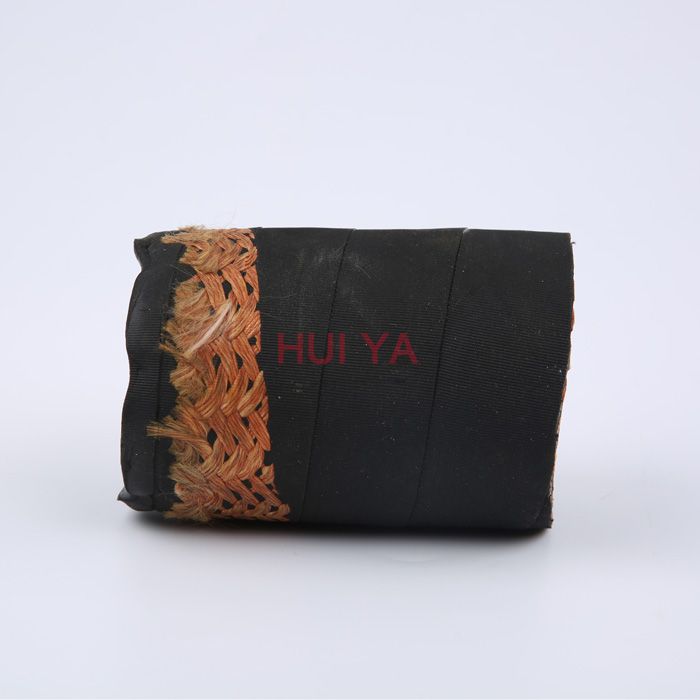

Construction: This oil resistant synthetic rubber hose shall consist of an inner tube of oil resistant synthetic rubber, two layers of braided suitable fiber, together with an oil and weather resistant synthetic rubber cover.
Scope of application
This hose is used for petroleum base hydraulic fluids within a temperature range of -40℃~+100℃.
| Item Code. | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| HYR3-5 | 5 | -3 | 3/16" | - | 13.5 | 105 | 1520 | 420 | 6090 | 75 | 0.16 |
| HYR3-6 | 6 | -4 | 1/4" | - | 14.5 | 87 | 1260 | 350 | 5075 | 75 | 0.18 |
| HYR3-8 | 8 | -5 | 5/16" | - | 16.8 | 84 | 1220 | 335 | 4860 | 100 | 0.27 |
| HYR3-10 | 10 | -6 | 3/8" | - | 18.2 | 110 | 1590 | 440 | 6380 | 70 | 0.23 |
| HYR3-12 | 12 | -8 | 1/2" | - | 21.5 | 93 | 1340 | 372 | 5390 | 85 | 0.29 |
| HYR3-16 | 16 | -10 | 5/8" | - | 25.6 | 80 | 1160 | 320 | 4640 | 105 | 0.39 |
| HYR3-19 | 19 | -12 | 3/4" | - | 28.8 | 70 | 1010 | 280 | 4060 | 130 | 0.45 |
| HYR3-25 | 25 | -16 | 1" | - | 35.4 | 55 | 790 | 220 | 3190 | 150 | 0.57 |
| HYR3-31 | 31 | -20 | 1,1/4" | - | 42.5 | 45 | 650 | 180 | 2610 | 190 | 0.73 |
| HYR3-38 | 38 | -24 | 1,1/2" | - | 49.4 | 40 | 580 | 160 | 2320 | 240 | 0.93 |
| THYR3-51 | 51 | -32 | 2" | - | 62.2 | 33 | 470 | 132 | 1910 | 300 | 1.30 |
