SAE 100R1AT single steel wire braided hose ( can also be smooth hydraulic rubber hose) is a typical medium pressure hydraulic hose and strongly recommended for hydraulic lines or general industrial system.
HY-SAE100 (R1-R19)hydraulic rubber hose specifications.pdf
Product parameters

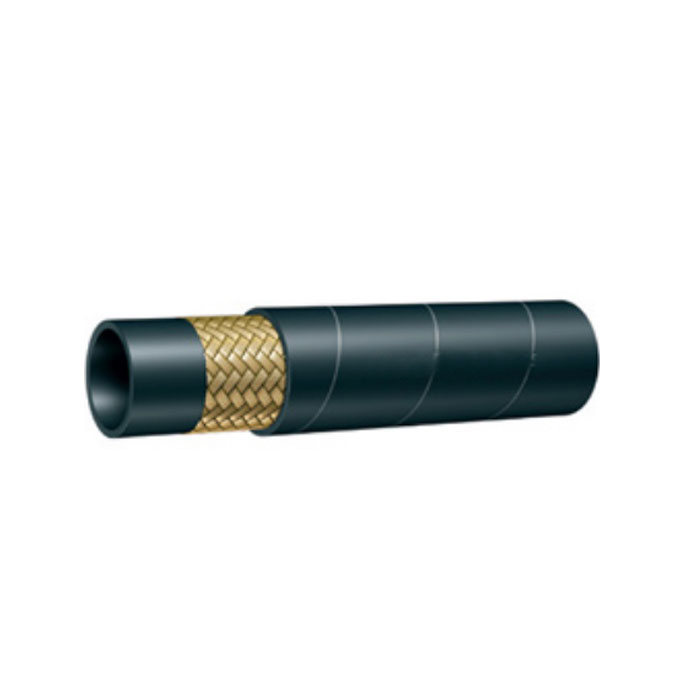

SAE 100R1AT single steel wire braided hose is a typical medium pressure hydraulic hose and strongly recommended for hydraulic lines or general industrial system. High tensile strength steel wire reinforcement makes this flexible rubber hose pipe support higher pressure than common steel wire does.
Tube: Oil resistant synthetic rubber
Reinforcement: One layer of braided high tensile steel wire
Cover: Abrasion and weather resistant synthetic rubber
Scope of application
This hose is used for petroleum base hydraulic fluids within a temperature range of -40℃~+100℃.
| Item Code | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| HYR1-5 | 5 | -3 | 3/16" | 9.5 | 11.5 | 250 | 3620 | 1000 | 14500 | 89 | 0.20 |
| HYR1-6 | 6 | -4 | 1/4" | 11.2 | 13.2 | 225 | 3260 | 900 | 13050 | 100 | 0.22 |
| HYR1-8 | 8 | -5 | 5/16" | 12.8 | 14.8 | 215 | 3110 | 850 | 12320 | 114 | 0.27 |
| HYR1-10 | 10 | -6 | 3/8" | 15.1 | 17.1 | 180 | 2610 | 720 | 10440 | 127 | 0.34 |
| HYR1-12 | 12 | -8 | 1/2" | 18.1 | 20.1 | 160 | 2320 | 640 | 9280 | 178 | 0.41 |
| HYR1-16 | 16 | -10 | 5/8" | 21.3 | 23.3 | 130 | 1880 | 520 | 7540 | 200 | 0.51 |
| HYR1-19 | 19 | -12 | 3/4" | 25.3 | 27.3 | 105 | 1520 | 420 | 6090 | 240 | 0.62 |
| HYR1-25 | 25 | -16 | 1" | 33.1 | 35.1 | 88 | 1270 | 350 | 5070 | 300 | 0.93 |
| HYR1-31 | 31 | -20 | 1.1/4" | 40.6 | 43.3 | 63 | 910 | 250 | 3620 | 419 | 1.25 |
| HYR1-38 | 38 | -24 | 1.1/2" | 47.0 | 49.7 | 50 | 720 | 200 | 2900 | 500 | 1.60 |
| HYR1-51 | 51 | -32 | 2" | 60.4 | 63.1 | 40 | 580 | 160 | 2320 | 630 | 2.20 |
